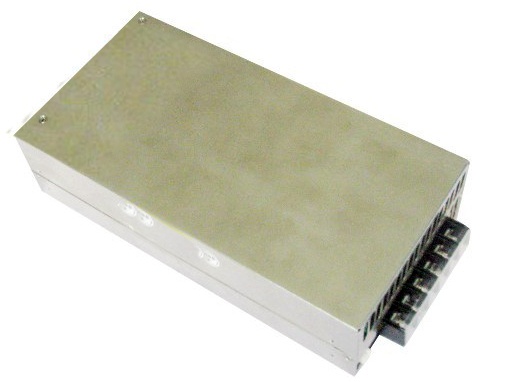

BCF-1000S 系列
■ 特點
● 全球電壓輸入：90～264Vac，100～370Vdc
● 主動式PFC，PF>0.96@230Vac, >0.98@120Vac
● 超寬工作溫度范圍 (-25℃~5
● 保護功能全面：輸入過欠壓/過載/短路/過壓/過溫
● LED工作指示，輸出可調功
● 豪華電解電容，高可靠性，長壽命
● 100%滿載老化
● 質保2年，終身維護
■規格
|
產品名稱 注1 |
BCF-1000S5 |
BCF-1000S12 |
BCF-1000S15 |
BCF-1000S18 |
BCF-1000S24 |
BCF-1000S36 |
BCF-1000S48 |
|
|
輸出 |
額定輸出電壓 |
5V |
12V |
15V |
18V |
24V |
36V |
48V |
|
整定范圍(輕載） |
5.0~5.1V |
12.0~12.12V |
15.0~15.15V |
18.00~18.18V |
24.0~24.24V |
36.0~36.36V |
48.0~48.48V |
|
|
額定輸出電流范圍 |
0~12 |
0~80 |
0~65 |
0~5 |
0~41.67 |
0~28 |
0~21 |
|
|
額定輸出功率 |
600W |
960W |
975W |
990W |
1000W |
1008W |
1008W |
|
|
紋波噪聲 注2 |
<80 mV |
<120 mV |
150mV |
150mV |
150mV |
240mV |
360mV |
|
|
輸出調節范圍 |
±5.0% |
±5.0% |
±5.0% |
±5.0% |
±5.0% |
±5.0% |
±5.0% |
|
|
穩壓精度 |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
輸出啟動時間 |
≤1S (220Vac input, Full load) |
|||||||
|
輸出保持時間 |
≥20mS(230Vac input, Full load) |
|||||||
|
電壓過沖 |
<5.0% |
|||||||
|
動態特性 |
10%-100%Load:10%Vp-p 10%-50%Load: 5%Vp-p 50%-100%Load: 5%Vp-p |
|||||||
|
輸入 |
輸入電壓范圍 |
88Vac~264Vac,100~370Vdc |
||||||
|
額定輸入電壓 |
100Vac~240Vac / 47Hz~63Hz |
|||||||
|
啟動電壓 |
90Vac |
|||||||
|
效率 (典型值) |
83% |
88% |
88% |
88% |
89% |
90% |
90% |
|
|
功率因數 |
>0.96@230Vac，>0.98@120Vac |
|||||||
|
輸入電流(最大值.) |
<10 |
|||||||
|
啟動沖擊電流 |
<10 |
|||||||
